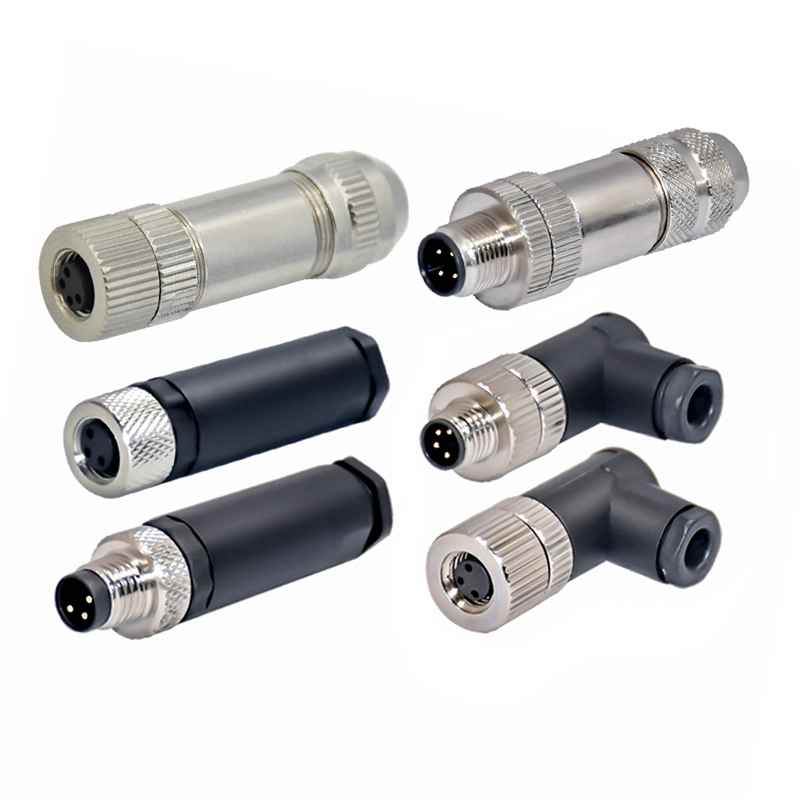

IP67 IP68 Waterproof Automation Sensor Connector M5 M8 M16 M23 7/8 M12 Circular Connector
Product Specifications
| Attribute |
Value |
| Type |
Adapter |
| Application |
Automotive |
| Gender |
Male female |
| Rated current |
1.5A-4A |
| Rated voltage |
30V-250V |
| Operating Temperature |
-25℃~85 ℃ |
| Degree of protection |
IP67/IP68 |
| Connector locking system |
Solder |
| Mechanical operation |
>500 mating cycles |
| Contact resistance |
≤10mΩ |
| Material of connector |
CuZn,TPU |
| Contact plating |
Au(gold plating) |
| Material of housing |
Brass/Zinc diecasting nickel plated |
Technical Specifications
Place of Origin: Guangdong, China
Brand: Rigoal
Pin Configuration: 3, 4, 5, 6, 8, 12, 17 pin
Code Types: A, B, D, X code
Customization: Available upon request
Product Features
- High durability with >500 mating cycles
- Excellent protection with IP67/IP68 rating
- Multiple connector locking systems: Solder, Screw, PCB, Wire
- Gold-plated contacts for superior conductivity
- Wide operating temperature range (-40°C to 85°C)
- Available in three main types: Solder panel mount, PCB panel mount, and Panel mount with wire
Panel Mount Connector Options
Our M12 Panel Mount Connectors are available in various configurations to suit different installation requirements:
Panel mounting product classification
Various methods for handling panel wire tails
Installation Options
Choose between front lock or rear lock installation based on your specific requirements. We offer customizable nut sizes for perfect panel fitment.
Panel installation options: front lock or rear lock

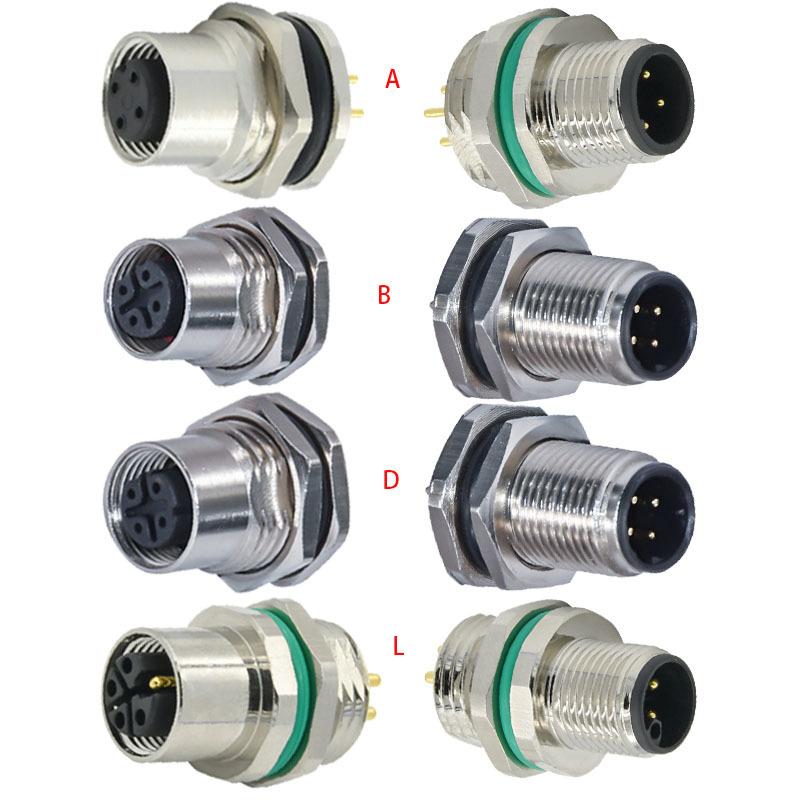

Interface Standards
We support multiple interface standards including A, B, C, D, X, T, S, L, M, T, Y coded configurations with core counts ranging from 3 to 17 pins.
Packing & Shipping
Packing:
- Panel without wire: Packed on trays with protective film
- Panel with wire: Packed in bags
- All units securely packed in cartons
- Custom packing available per customer requirements
Shipping:
We offer flexible shipping options including DHL, FedEx, TNT, UPS, air, sea, and train transportation based on customer needs.
Frequently Asked Questions
Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013.
Q2: How to buy M12 panel mount from your company?
A: Please contact us with your requirements or request our catalog. For custom products, provide drawings or our engineering team will assist with design.
Q3: How can you guarantee quality?
A: We conduct pre-production samples and final inspections before shipment to ensure quality standards.
Q4: How about the payment terms?
A: Standard terms are 30% deposit, 70% before shipment, with balance against shipment documents.
Q5: How long is the delivery time?
A: Typically within two weeks - contact us for specific lead times based on your order.
